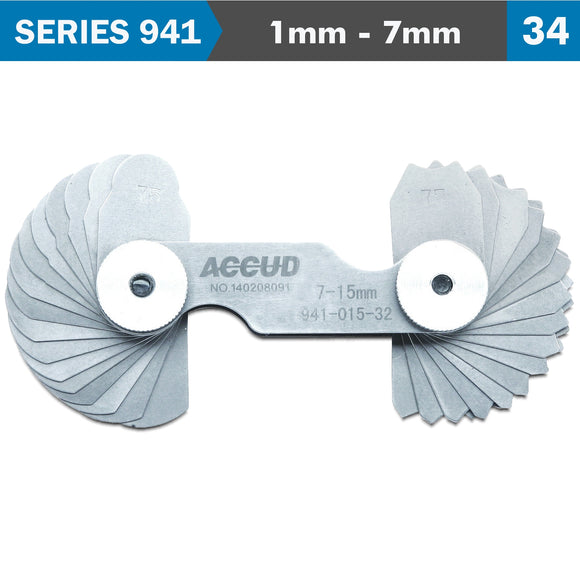

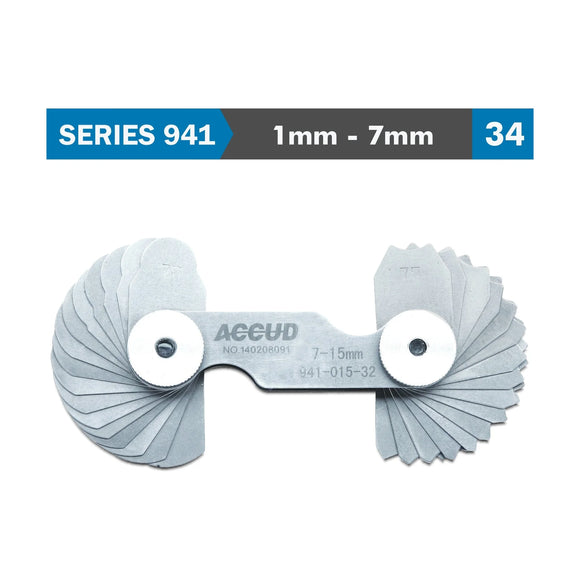

Accud Radius Gauge 1-7mm 17 x 2 Leaves 0.03mm Accuracy Concave & Convex Surface

The ACCUD AC941-007-34 Radius Gauge (1-7mm Convex/Concave) is a precision measurement tool used to accurately gauge both convex and concave radii within the range of 1mm to 7mm. It is ideal for tasks such as checking the radius of edges, grooves, or surfaces, particularly in machining, metalworking, and quality control applications.

It is a high-quality, durable tool designed to provide accurate convex and concave radius measurements. Its compact design, a wide range of measurement sizes, and precision make it an indispensable tool in machining, metalworking, and quality control.

• Check the radius
• With concave and convex surface in each size

Applications:

• Machining and Fabrication: Used to check the radius of machined parts and ensure they conform to design specifications.
• Metalworking: Useful for gauging the radius of edges and grooves on metal surfaces, ensuring precision during manufacturing.
• Quality Control: Commonly used in quality inspection processes to verify that the radii of components meet the required specifications.
• Tool and Die Making: Helps in designing and inspecting tools and dies that require specific radii for shaping and cutting materials.
