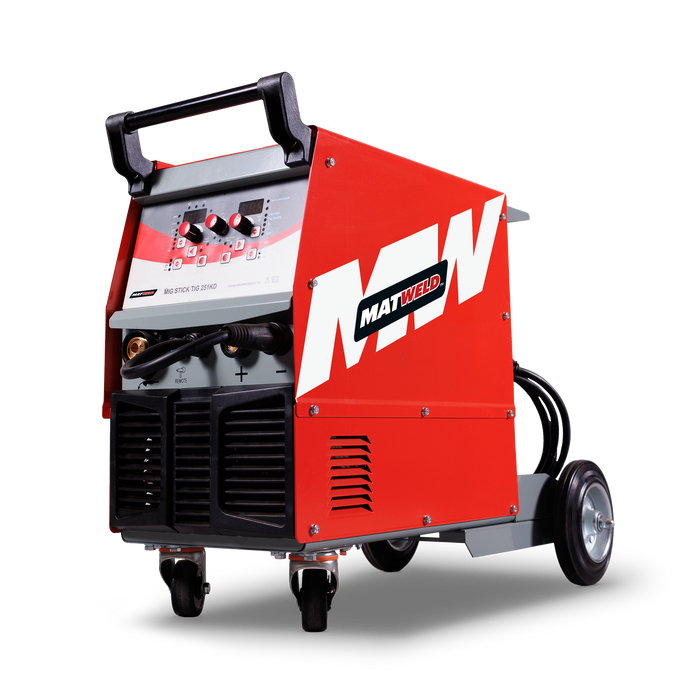

Product Description
Experience cutting-edge welding technology with the MAT9105. This IGBT inverter-based machine offers constant current, constant voltage (CC/CV) functionalities and a high 60% duty cycle at 40C. Its three welding processes (MIG, TIG, MMA Stick Welding) in one machine provide exceptional versatility for various welding applications.
Technical Specifications:
- Amperage: 250A
- Voltage: Single Phase 220V
- Technology: IGBT inverter-based
- Duty Cycle: 60%
- Welding Processes: MIG, TIG, MMA Stick Welding
| Input Power Voltage |
220V ±15% |
|---|---|
| Frequency |
50/60HZ |
| Rated Input Power |
45 KVA |
| No Load Voltage |
60V |
| Output Current Range (MMA) |
20 – 200A |
| Output Current Range (TIG) |
15 – 250A |
| Output Current Range (MIG) |
30 – 250A |
| Rated Work Voltage |
28V |
| Duty Cycle % |
60% |
| Suitable Welding Wire |
0.8/1.0mm |
| Type of Wire Feeder |
Internal |
| Protection Class |
IP21S |
