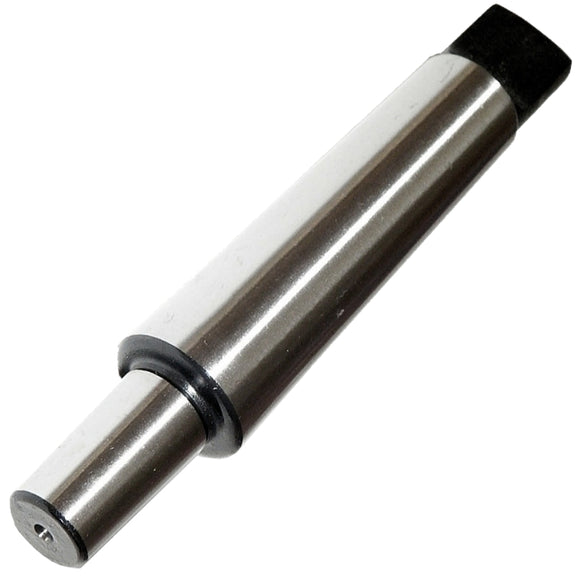

Tork Craft Taper Adaptor Mt3 - B16

This product is available Online Only

R 90.00

Tax includedShipping calculated at checkout

Barcode: 6009515810900

MT3 - B16 arbor

Morse taper MT3 to B16 arborDrill chuck morse taper holder for the adaption of a drill chuck for your drill or mill. Simply fit the drill chuck onto the B16 side and away you go.

Read More...

In stock!

Share This On Social Media

Go To Compare

Share This On Social Media

Description Features Specifications
MT3 - B16 arbor

Morse taper MT3 to B16 arborDrill chuck morse taper holder for the adaption of a drill chuck for your drill or mill. Simply fit the drill chuck onto the B16 side and away you go.

  • Outside taper: MT-3,
  • Pintle Size: B16.
  • Hardened tang and precision ground
  • Used to adapt drill chucks to your drill press, milling machine or lathe

Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.

To remove chuck from arbor
Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right.

By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.



Brand Tork Craft
Delivery time 3 - 5 Days
Supplier iq reference VER010
Vendor sku CMMT3
